PERC 400W Solar Panel

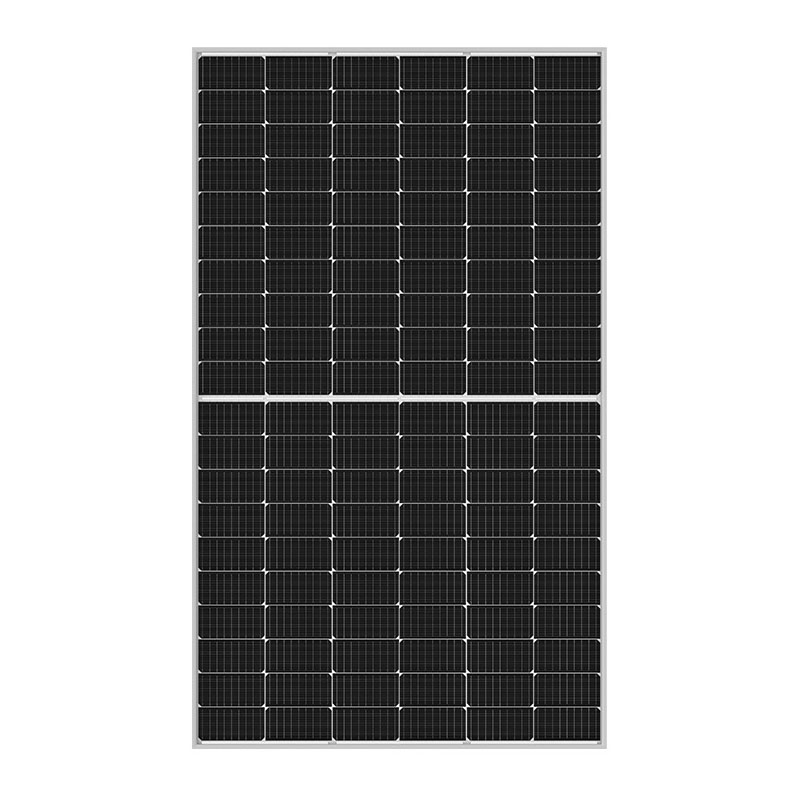

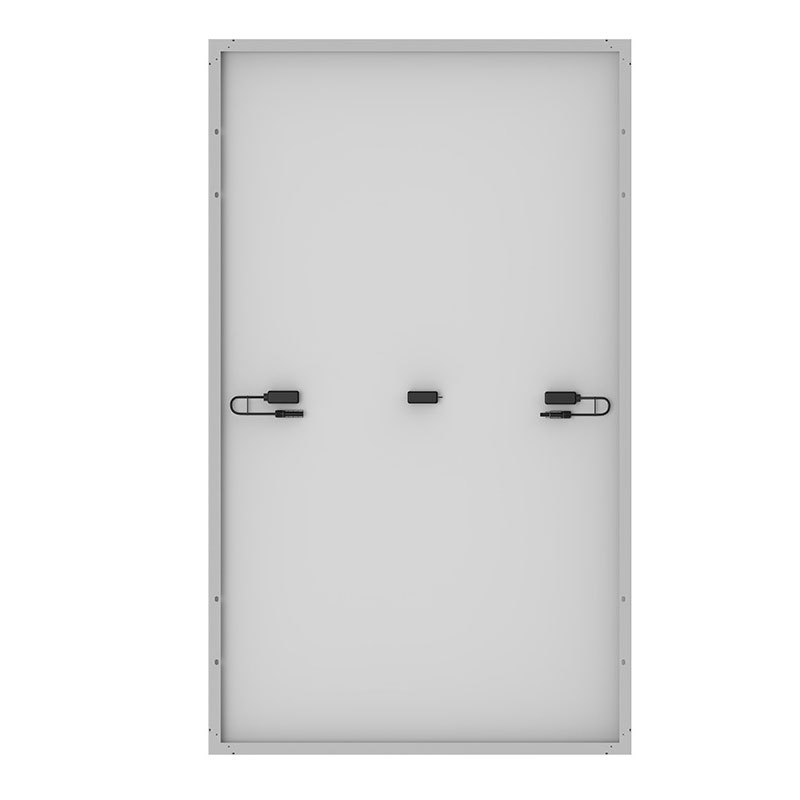

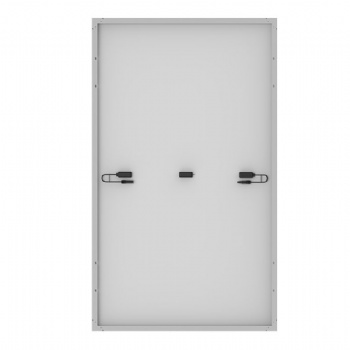

PERC 182mm Half Cell Mono Solar Panel 400W
Rigid glass solar panels are best suited for long-term fixed installation, such as home, commercial, grid-tied and off-grid solar systems.
Model: TR-400M
Weight: 21.0kg
Solar cell: Mono 182mm
Dimension: 1722*1134*35mm

Inquiry Now

Description

182mm Half Cell Series

108-CELL HALF CUT MONOCRYSTALLINE SOLAR MODULE

390-410W

Electrical Parameters at STC

Module	TR-390M	TR-395M	TR-400M	TR-410M
Pmax/W	390	395	400	410
Solar Panel Efficiency	20.6%	20.8%	21.1%	21.3%
Voc/V	30.76	30.98	31.18	31.59
Isc/A	12.69	12.76	12.83	12.98
Pmp/V	36.62	36.84	37.04	37.45
Imp/A	13.59	13.66	13.73	13.88
Power Tolerance	0 to +5W
STC: Irradiance 1000W/㎡、AM=1.5、Module temperature 25℃

Half Cell Solar Panel Advantage

Half-cell modules have solar pv cells that are cut in half, which improves the module's performance and durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a little more power. Smaller cells experience reduced mechanical stresses, so there is a decreased opportunity for cracking. Half-cell modules have higher output ratings and are more reliable than traditional panels.

Dimension
