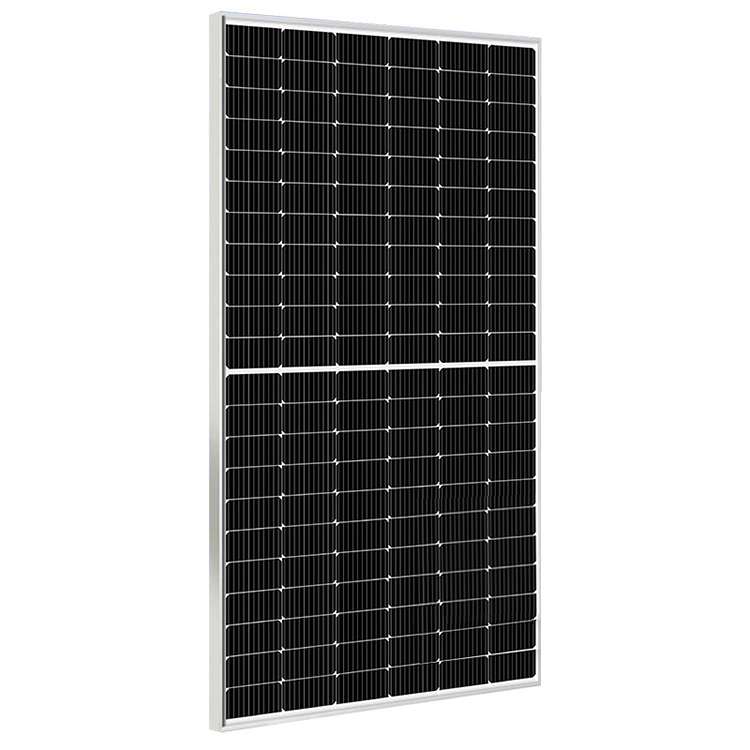

PERC 182mm Half Cell Mono Solar Panel 500W Rigid glass solar panels are best suited for long-term fixed installation, such as residential, commercial, grid-tied and off-grid systems. Model: TR-500M Weight: 25.1kg Solar cell: PERC mono 182mm Dimension: 2094*1134*35mm
182mm Half Cell Series
132-CELL HALF CUT MONOCRYSTALLINE SOLAR MODULE
490-505W
Electrical Parameters at STC
| Module | TR-490M | TR-495M | TR-500M | TR-505M |
| Pmax/W | 490 | 495 | 500 | 505 |
| Solar Panel Efficiency | 20.6% | 20.8% | 21.1% | 21.3% |
| Voc/V | 45.33 | 45.49 | 45.65 | 45.79 |
| Isc/A | 13.79 | 13.86 | 13.92 | 13.99 |
| Pmp/V | 38.02 | 38.18 | 38.33 | 38.5 |
| Imp/A | 12.89 | 12.97 | 13.05 | 13.12 |
| Power Tolerance | 0 to +5W | |||
| STC: Irradiance 1000W/㎡、AM=1.5、Module temperature 25℃ | ||||
Half Cell Photovoltaic Solar Panels Advantage
Half-cell modules have pv cells that are cut in half, which improves the module's performance and durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a little more solar power. Smaller cells experience reduced mechanical stresses, so there is a decreased opportunity for cracking. Half-cell modules have higher output ratings and are more reliable than traditional pv panels.

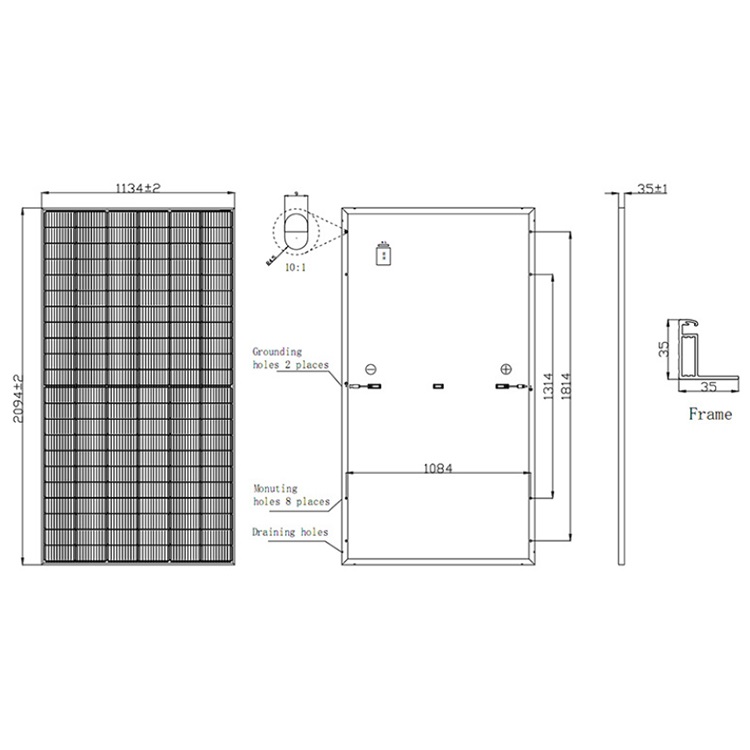

Dimension
| Size ( L x W x H) | Cell Qty | Power Range | Weight |
| 2094mm×1134mm×35mm | 132 (6x22)pcs | 490-505W | About 25.1kg±3% |
Warttanty
^ 10-years warranty for material and technology
^ 25-years linear power output warranty
Please contact us for complete product parameters.
