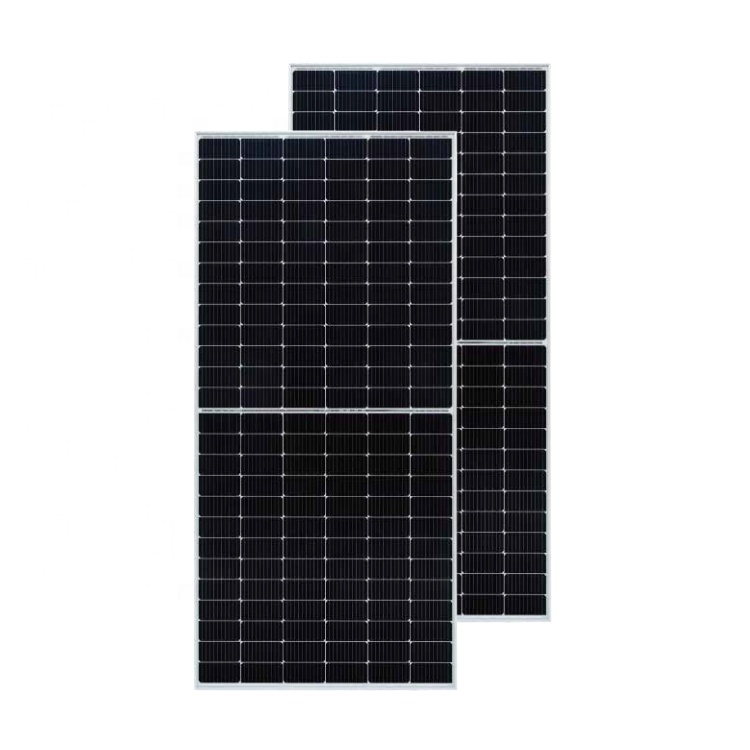

PERC 182mm Half Cell Mono Solar Panel 600W Rigid glass solar panels are best suited for long-term fixed installation, such as residential, commercial, grid-tied and off-grid systems. Model: TR-600M Weight: 30.0kg Type of Solar cell: Mono 182mm Solar Panel Dimension: 2464*1134*35mm
182mm Half Cell Series
156-CELL HALF CUT MONOCRYSTALLINE SOLAR MODULE
580-600W
Electrical Parameters at STC
| Module | TR-580M | TR-585M | TR-590M | TR-595M | TR-600M |
| Pmax/W | 580 | 585 | 590 | 595 | 600 |
| Solar Panel Efficiency | 20.7% | 20.9% | 21.1% | 21.3% | 21.5% |
| Voc/V | 53.5 | 53.65 | 53.8 | 53.95 | 54.1 |
| Isc/A | 13.82 | 13.89 | 13.96 | 14.03 | 14.1 |
| Pmp/V | 44.9 | 45.07 | 45.22 | 45.39 | 45.53 |
| Imp/A | 12.92 | 12.98 | 13.05 | 13.11 | 13.18 |
| Power Tolerance | 0 to +5W | ||||
| STC: Irradiance 1000W/㎡、AM=1.5、Module temperature 25℃ | |||||
Half Cell Solar Panel Advantage
Half-cell modules have solar cells that are cut in half, which improves the module's performance and durability. When solar cells are halved, their current is also halved, so resistive losses are lowered and the cells can produce a little more power. Smaller cells experience reduced mechanical stresses, so there is a decreased opportunity for cracking. Half-cell modules have higher output ratings and are more reliable than traditional panels.

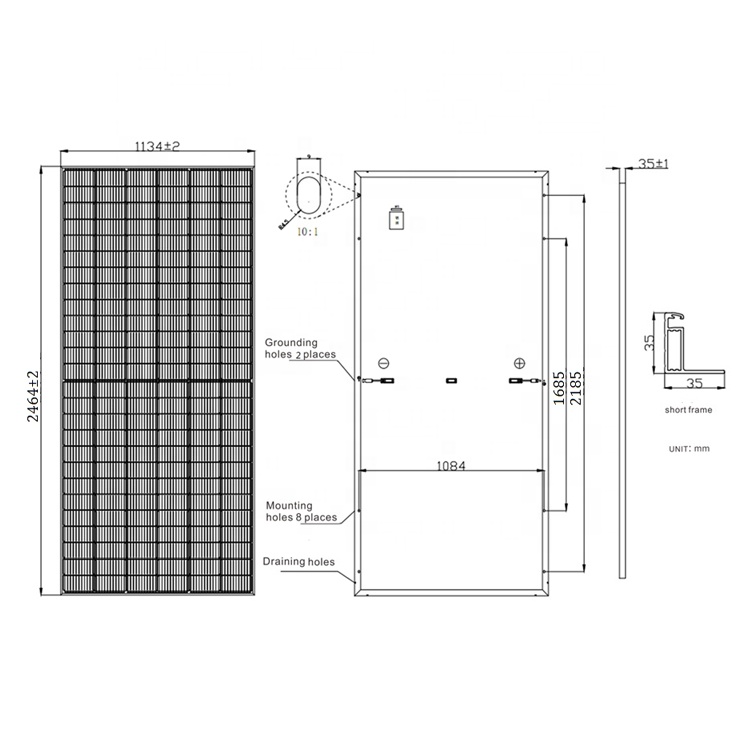

Dimension
| Size ( L x W x H) | Cell Qty | Power Range | Weight |
| 2464mm×1134mm×35mm | 156 (6x26)pcs | 580-600W | About 30kg±3% |
Warttanty
^ 10-years warranty for material and technology
^ 25-years linear power output warranty
Please contact us for complete product parameters.
