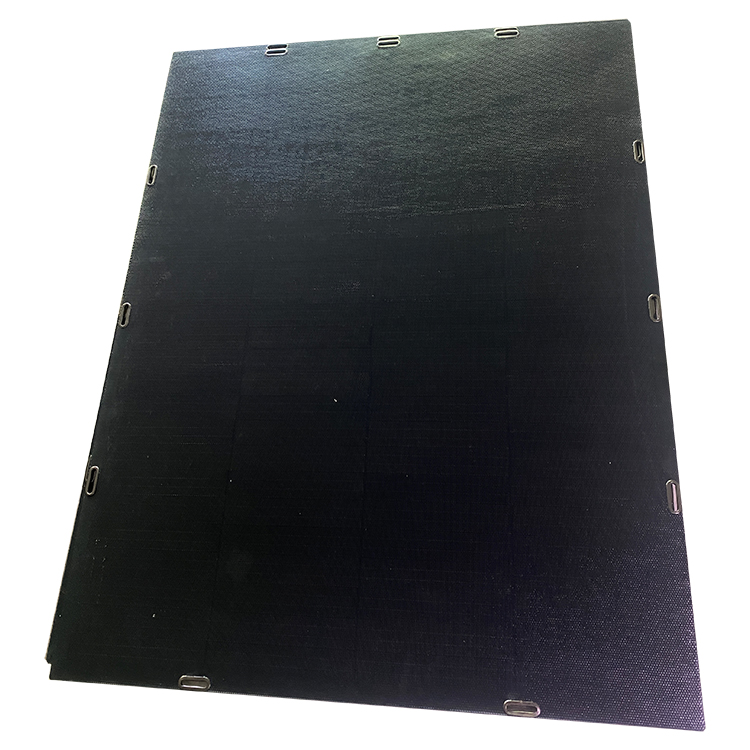

Balcony Flexible Solar Panel Model: TR-120M Brand: TIENREK Weight: 2.5kg Solar cell: HJT 158.75 half cut cell Surface material: ETFE Dimension: 1850*990*2mm
Balcony Flexible Solar Panels Series

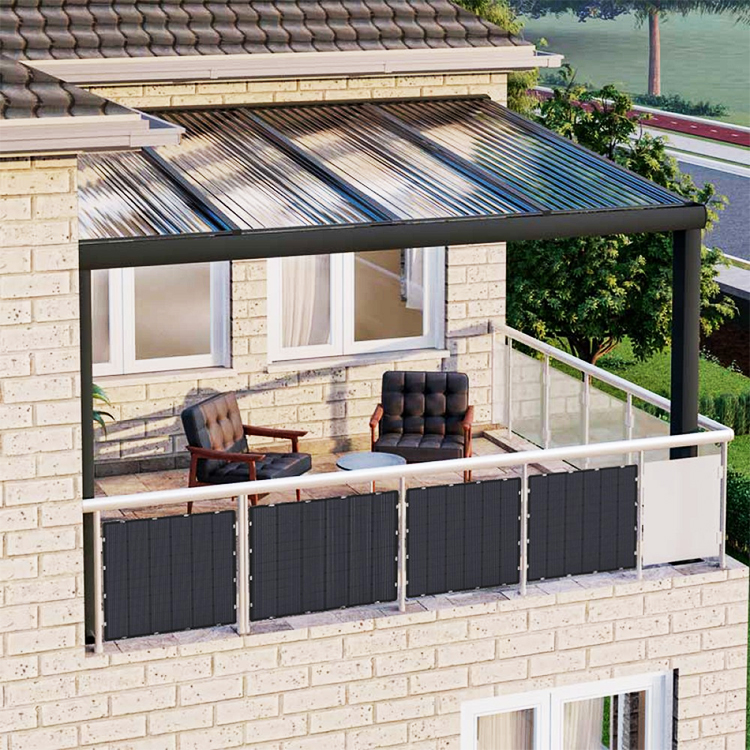

Tienreksolar Balcony Flexible Solar Panel is a glass-free and frameless solar module, full black color popular use in Balkonkraftwerk plug and play Photovoltaik Anlage.
Application:
1, 400W(2x200W) Sunpower Flexible Solar Panel + 350W Micro Inverter
2, 720W(6x120W) Shingled Flexible Solar Panel + 600W Micro Inverter
Specification
| Power of Solar Panel | 120 Watt | 200 Watt |
| Solar Cell | Singled mono solar cell | Sunpower solar cell |
| Size | 900*700*3mm | 1065*940*3mm |
| Vmp (V) | 16 | 30.8 |
| Imp (A) | 7.5 | 6.5 |
| Voc (V) | 19.8 | 36.9 |
| Isc (A) | 8.17 | 7.1 |
| Structure | ETFE surface, Middle Composite Film, TPT backsheet | |
| Junction Box | IP67, 0.9m PV cable + MC4 Connector | |
| Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃ | ||
If need other power or glass one please contact with us.
