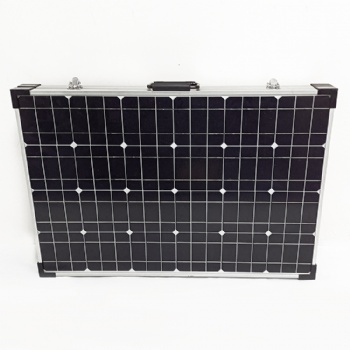

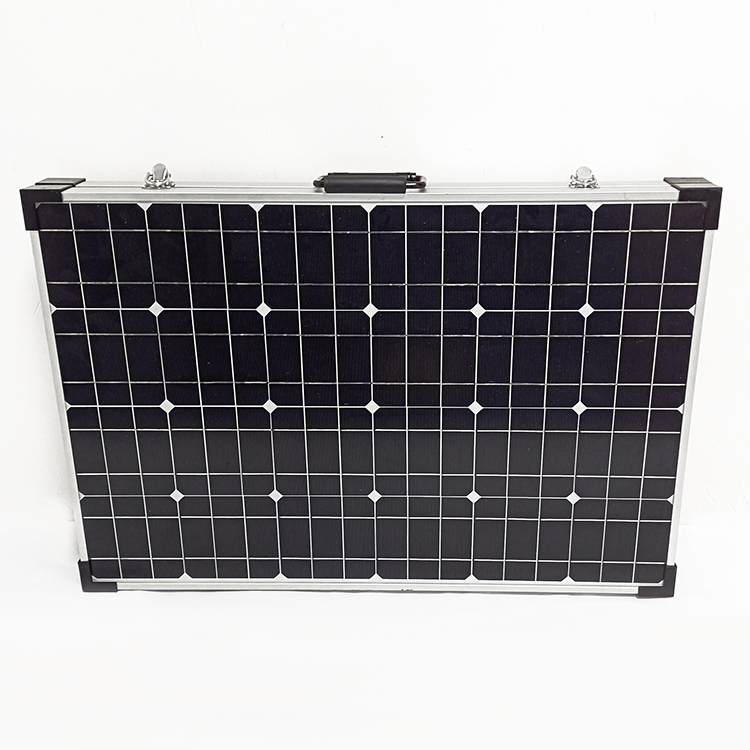

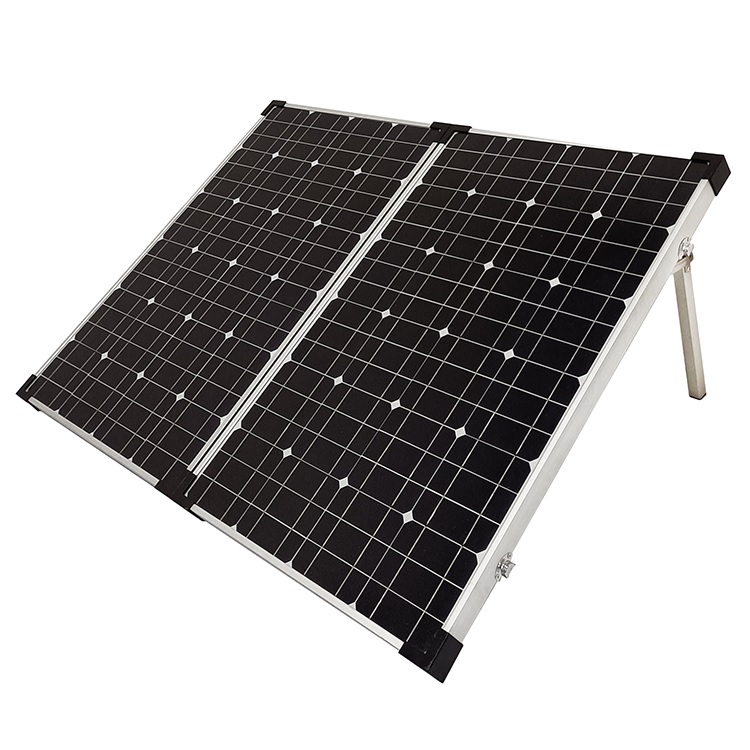

Rigid Glass Folding Solar Panels for Off Grid Solar System Model: TR2F-160M Brand: TIENREK Weight: 12.0kg Solar cell: Mono Surface material: Tempered Glass Open Size: 1390*680*30mm Folded Size: 690*680*66mm
Rigid Glass Folding Solar Panel Features:
- Sustainable output and excellent protected cover tempered glass.
- Great resistance to wind pressure, snow load and extreme temperature.

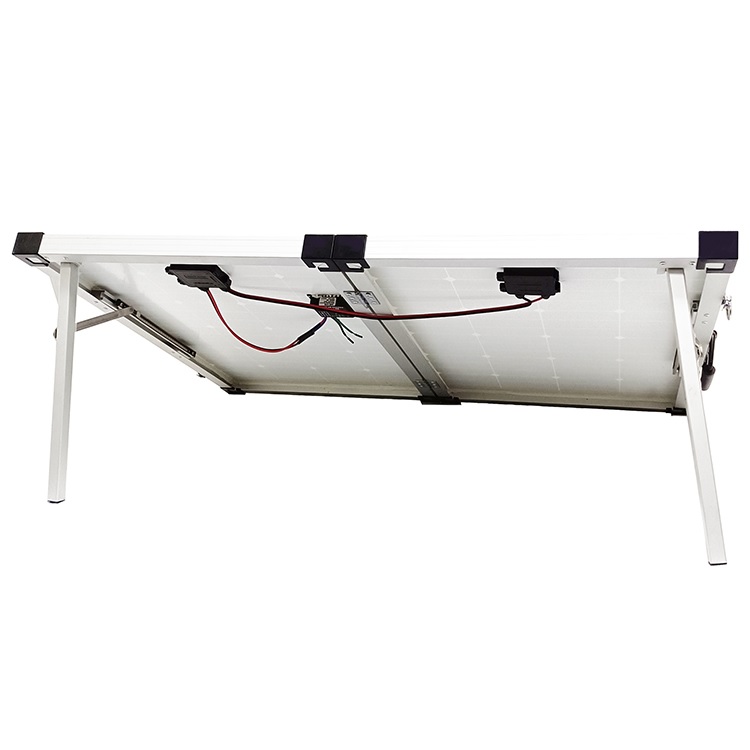

- Adjustable aluminum stands for better absorbing sunlight.
- 25 years of service life.
Specifcation
| Power of Solar Panels | 160 Watt | 180 Watt |
| Fold Number | 2 Fold | |
| Solar Cell | Mono 156*156 | |
| Number of Cell | 32PCS | 36PCS |
| Vmp (V) | 16.5V | 18.6V |
| Imp (A) | 9.69A | 9.47A |
| Voc (V) | 19.8V | 23V |
| Isc (A) | 10.65A | 9.78A |
| Open Size (mm) | 1390*680*30 | 1390*783*30 |
| Folded Size (mm) | 690*680*66 | 690*783*66 |
| N.weight (kg) | 12KGS | 14KGS |
| Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃ | ||
Also can design complete folding solar panel kit, including: solar charge controller, Anderson plug, battery clips and strong carry bag (optional).
More information or other specificaton contact with us.
